ABAC Air Needle Scaler

ABAC air needle scalers with 19 or 28 needles at 3,500 to 3,700 blows per minute, for rust, scale and coating removal.

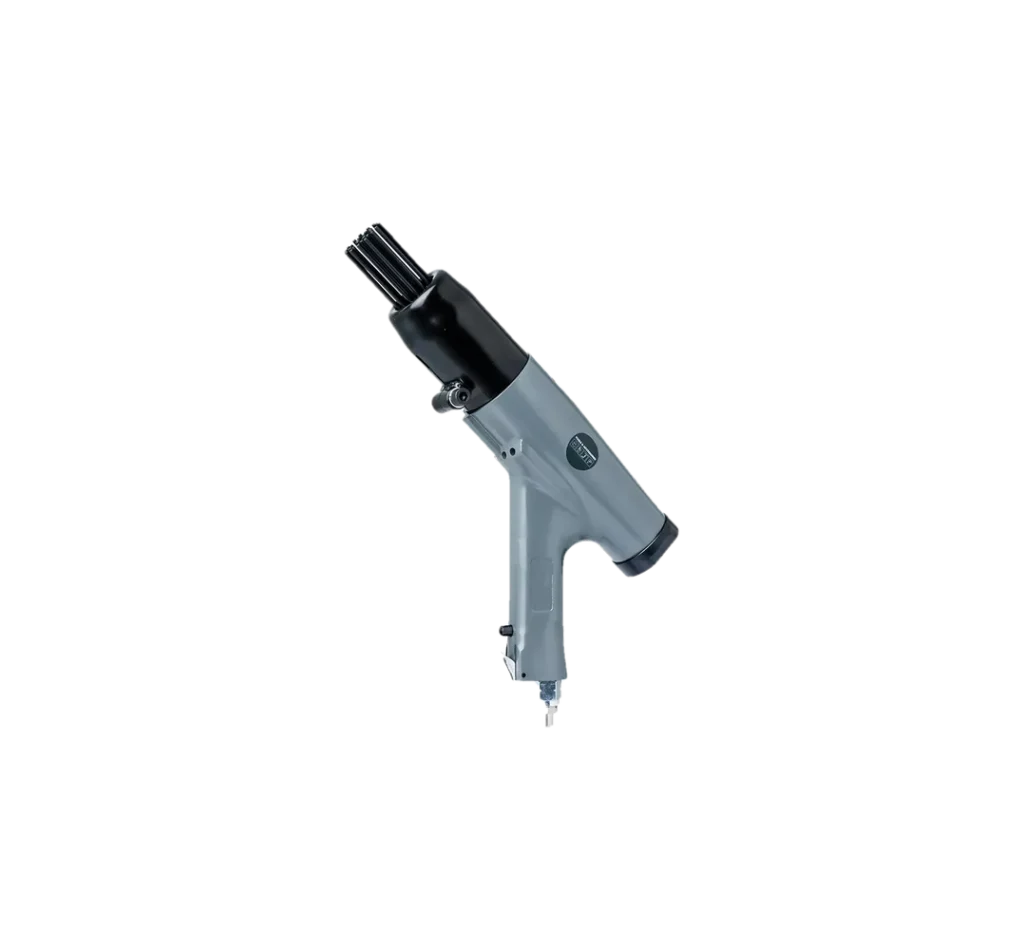

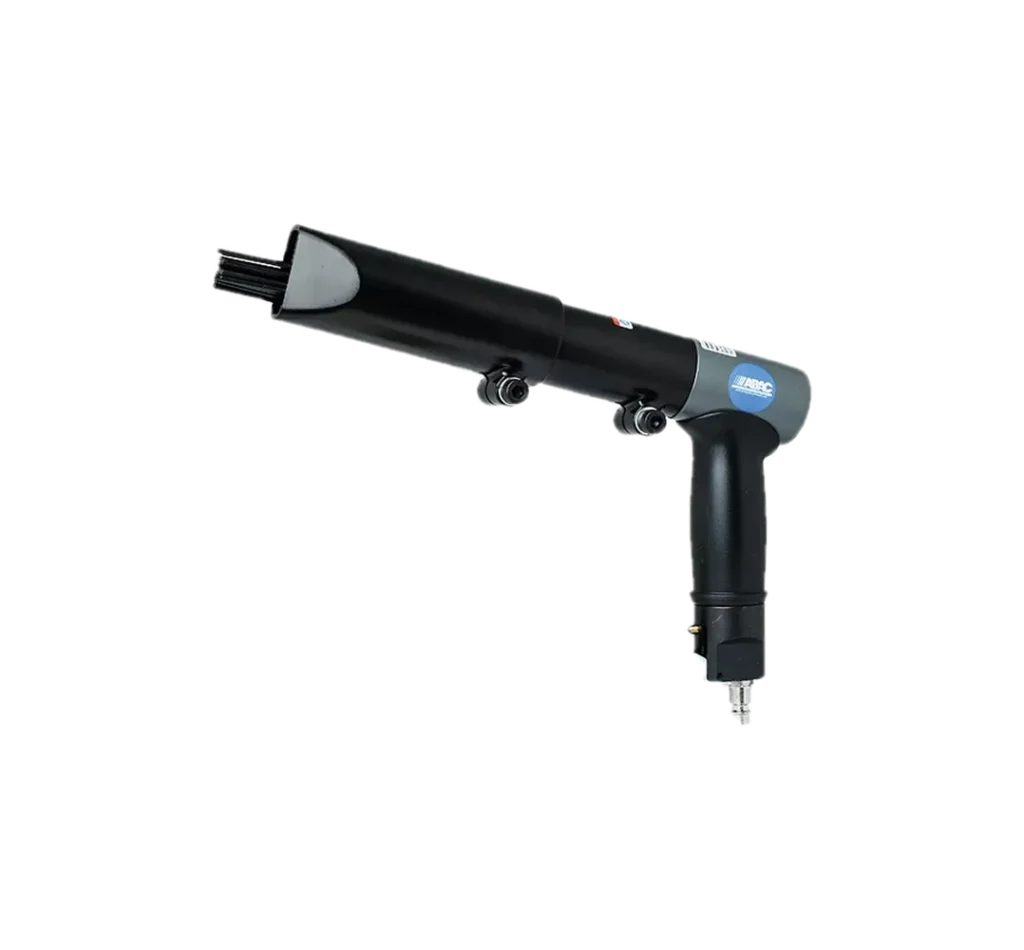

A needle scaler strips rust, scale, weld slag and old coatings by driving a bundle of loose needles against the surface, so it follows an irregular profile that a disc or a flap wheel would skip over. ABAC offers a 19-needle tool at 3,700 blows per minute and 2.7 kg, and a 28-needle heavy duty tool at 3,500 blows per minute and 3.5 kg for the construction sector.

Both use a pistol grip for ergonomics and an adjustable needle guide so the bundle can be set to the work, and the needles pull out for replacement without tools. Air consumption is 180 and 288 l/min at 6.3 bar. Send us the surface, the coating and the area to be covered, and we will confirm which of the two suits the duty.

AIR NEEDLE SCALER RANGE

OTHER ABAC PNEUMATIC TOOL PRODUCTS

REQUEST A QUOTE

Not sure which solution best fits your application? Our engineers are available to review your requirements and help you select the most suitable products and materials for your project.

Request a Quote

quotation form

This field is required.
This field is required.
This field is required.
ABAC General Catalogue 2025

ABAC General Catalogue 2025

The Air Tools section of ABAC's current general catalogue, pages 103 to 131, with the specification table for each model in this range (Needle Scaler 19 PRO, Needle Scaler 28 PRO), covering air consumption, speed, torque, weight, dimensions and vibration to EN-ISO 28927-9.
