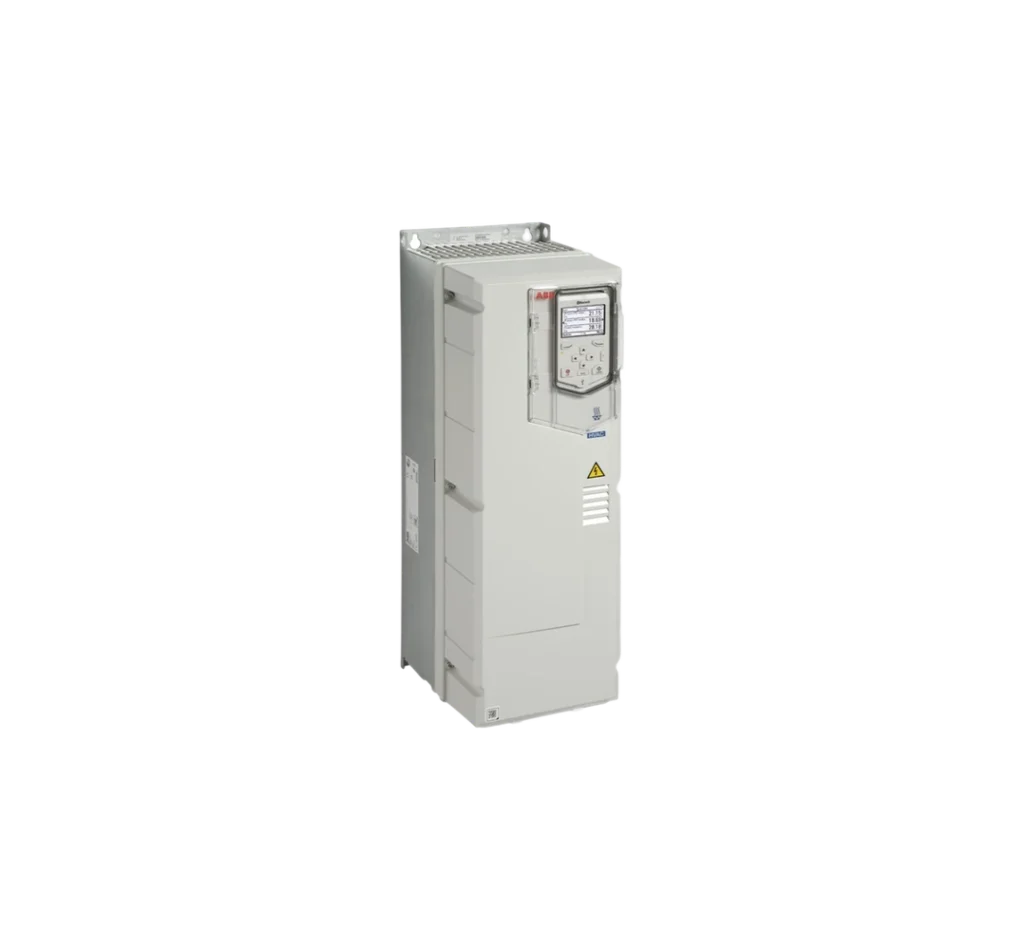

ACH580-01 wall-mounted drives
The all-in-one drive for wall mounting.
A complete HVAC drive with the building-services features and protocols already included, for plant rooms and riser cupboards where no drive cabinet is available.
ACH580 HVAC Drives
ABB ACH580 drives are the HVAC family of the all-compatible range. They cover 0.75 to 500 kW at 200 to 480 V, in enclosures from IP00 to IP55. The same drive suits a plant room or a rooftop unit.
Coated boards and a 50 degree Celsius rating hold up in warm plant spaces. Building-services features and protocols come as standard rather than as options, which keeps commissioning short. Abtaz supplies ABB ACH580 drives for supply and extract fans, chilled water and heating pumps, cooling towers and air handling units.
ACH580 HVAC DRIVE RANGE
-
-

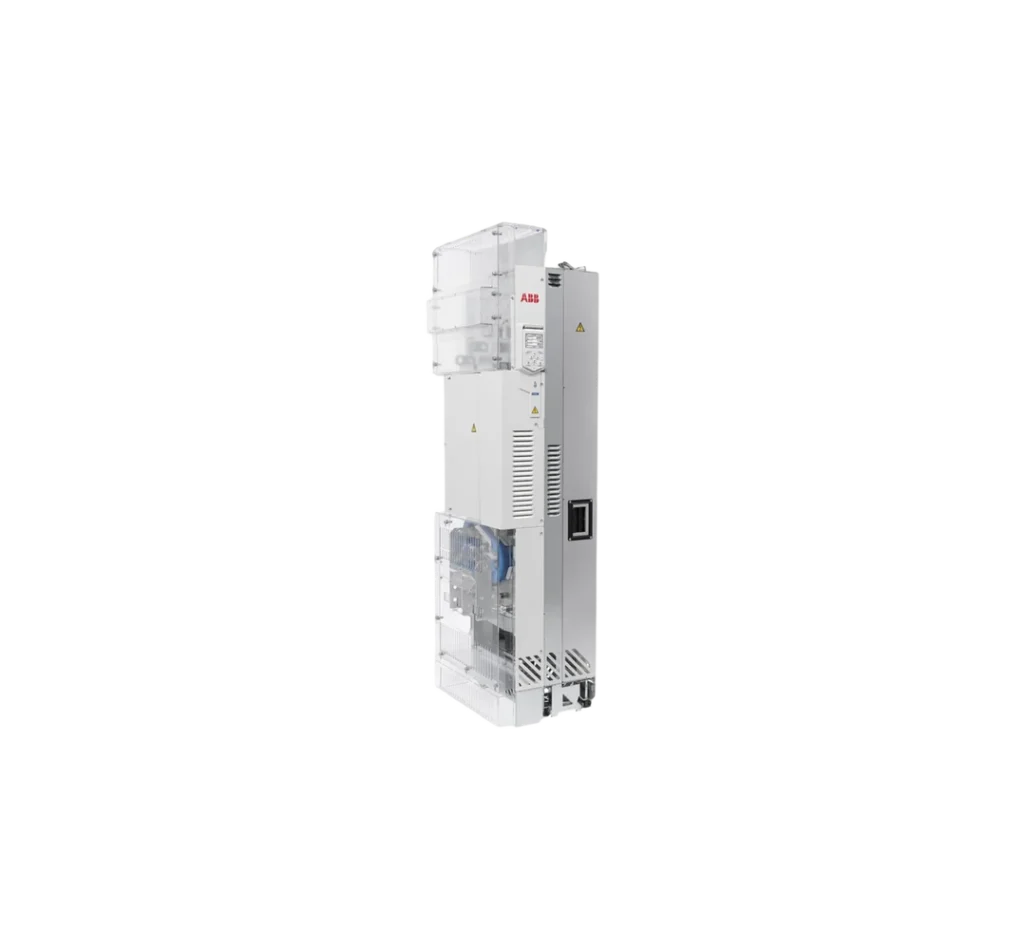

ACH580-04 drive modules
High power drive modules for cabinet builders.
The module form for panel builders integrating higher ratings into their own enclosure, with their own cooling and protection arrangement.
-

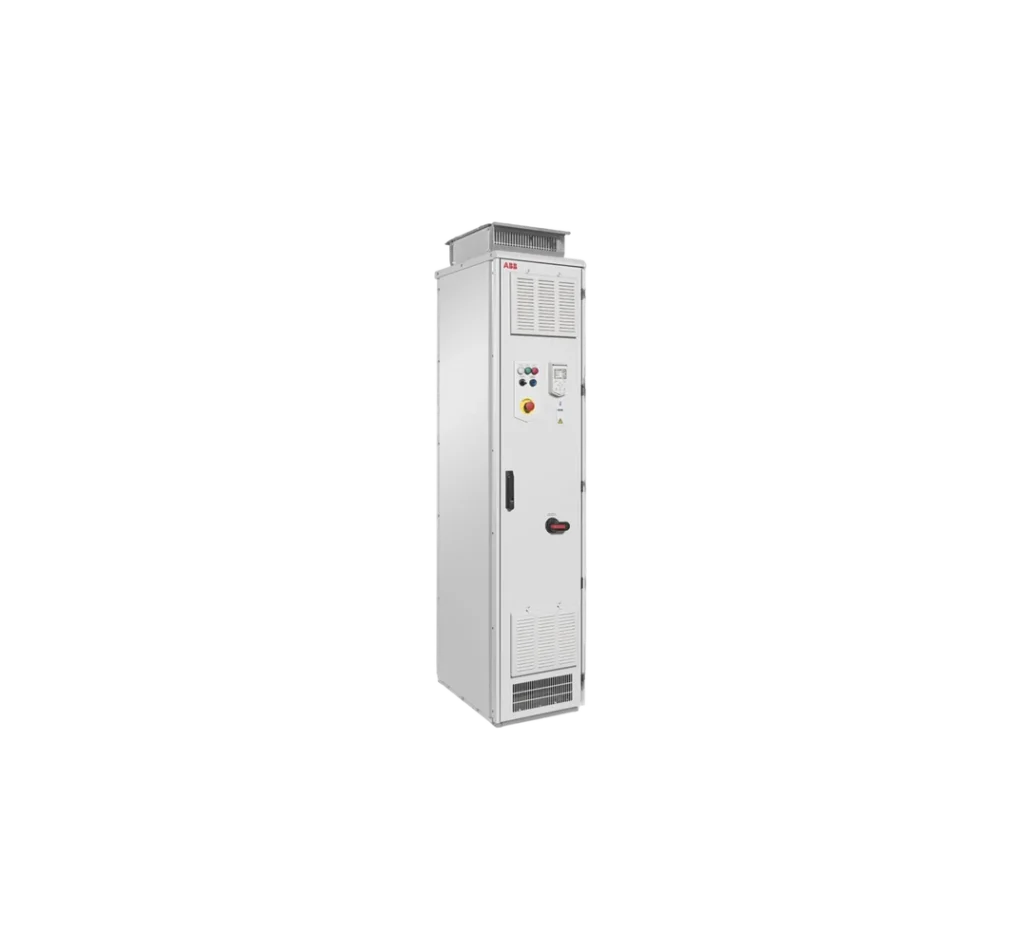

ACH580-07 cabinet-built drives
Ready-made cabinet drives for larger plant.
A cabinet drive delivered with the switchgear and cabling already engineered, used on larger air handling and chilled water plant where site assembly time matters.
-

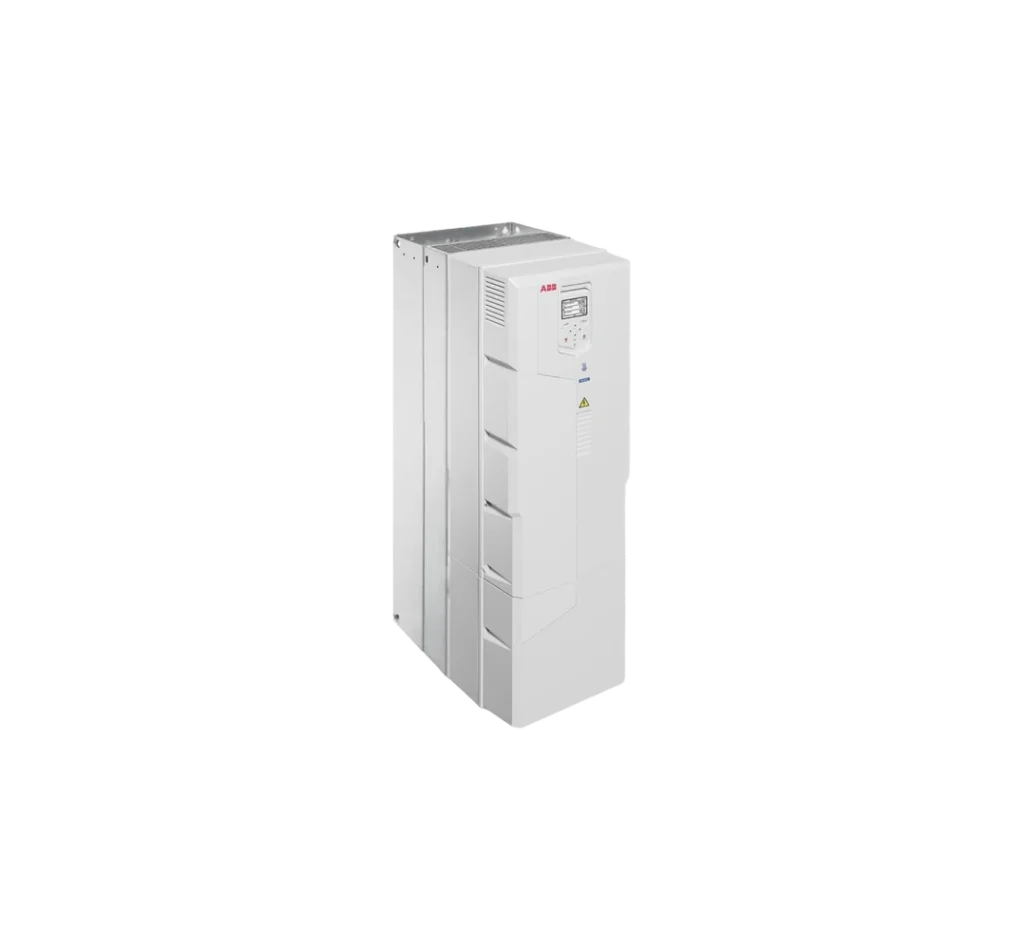

ACH580-31 ultra-low harmonic drives
Wall-mounted, with ultra-low harmonic input.
An active supply holds harmonic distortion low at the point of connection, which is often a condition of connection in occupied buildings and hospitals.
-

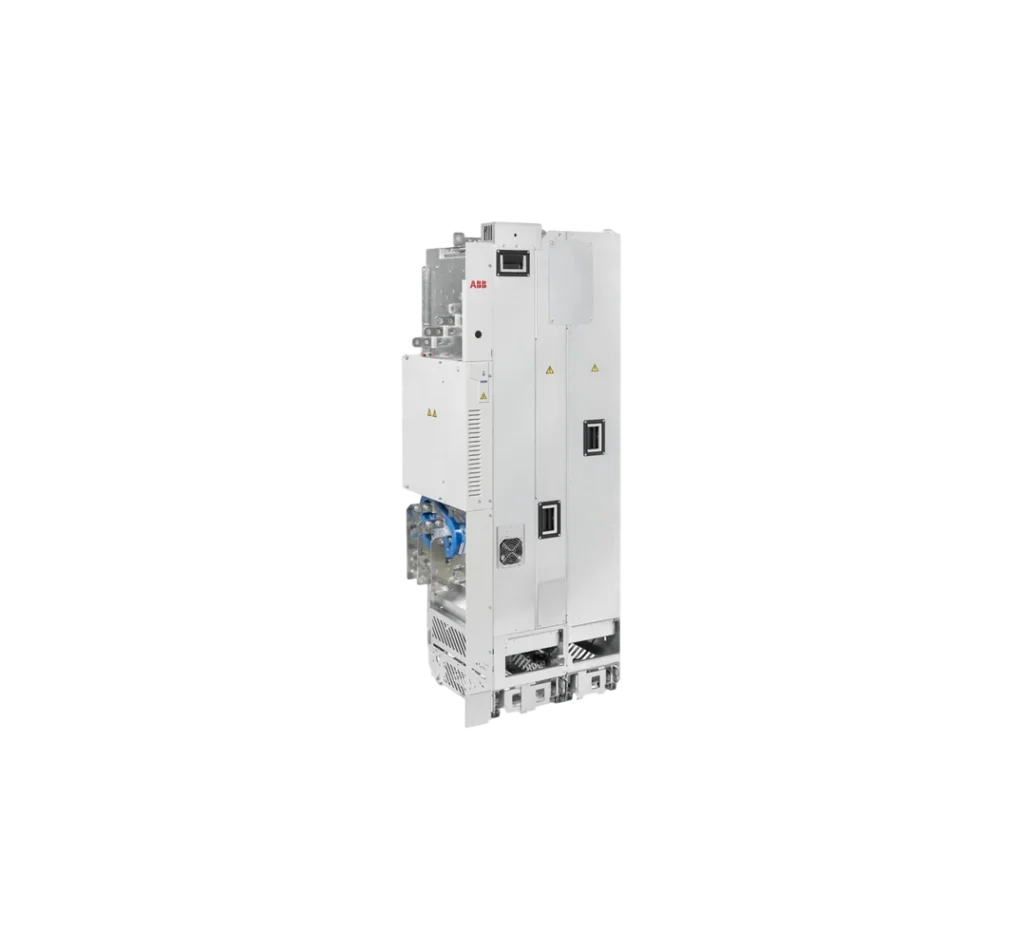

ACH580-34 ultra-low harmonic modules
Exceptionally low harmonics at high power.
The ultra-low harmonic approach in module form, for the largest building-services ratings integrated into a bespoke cabinet.
