ABB process performance motors suit installations where a stock motor will not do. The induction range covers 0.12 to 1,300 kW at 230 to 690 V, up to efficiency class IE5. Permanent magnet, water-cooled and liquid-cooled variants extend the range where the duty demands it.
Abtaz supplies ABB process performance motors for pumps, fans, compressors, mixers and extruders. Typical sectors are chemical, oil and gas, food and beverage, marine, metals and water treatment. Send us the specification or the existing nameplate, and we will confirm a suitable configuration.

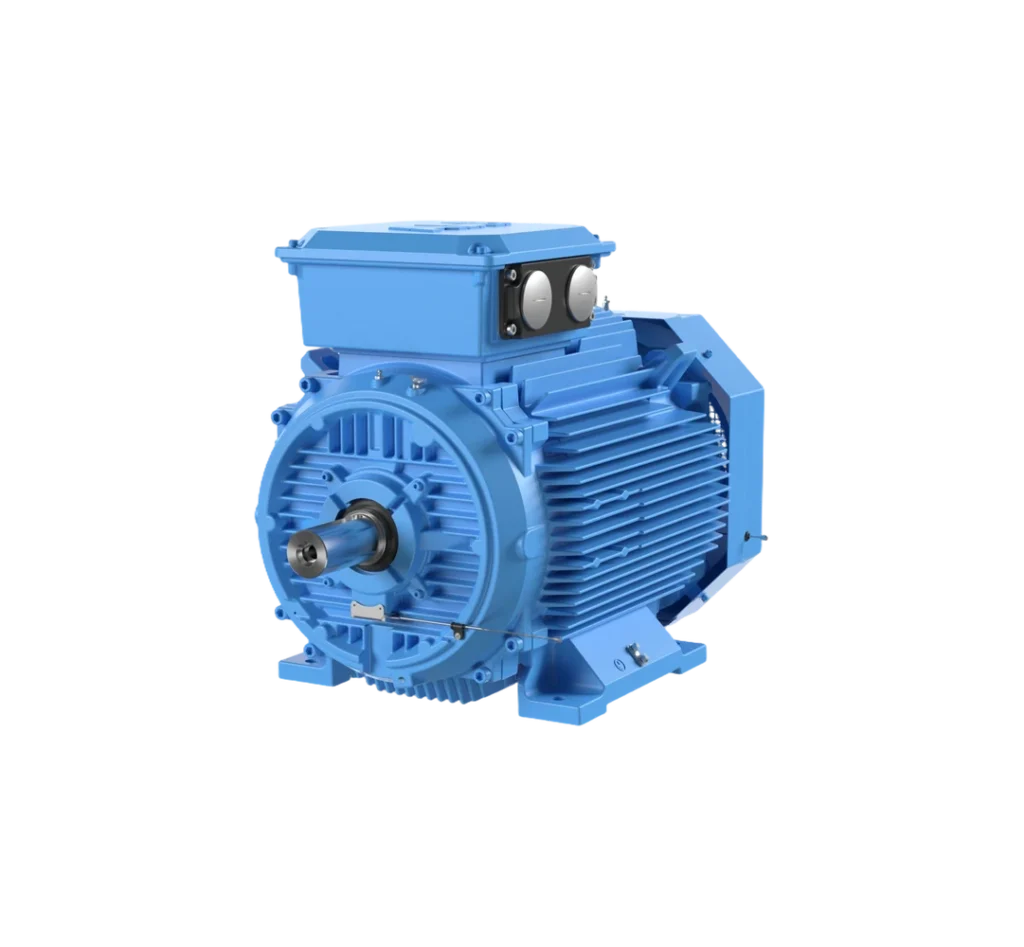

0.12 to 1,300 kW at 230 to 690 V, up to efficiency class IE5.
The mainstream branch of the range, configured to the installation rather than picked from a stock list. It is the usual choice for pumps, fans and compressors across chemical, oil and gas, marine and water treatment plant.
0.75 to 450 kW at 230 to 690 V, frame sizes 90 to 315.
A magnet-free synchronous reluctance rotor removes rotor losses while keeping induction-motor servicing. ABB positions it for water, HVAC, food and materials handling duties inside the process performance programme.
Cast iron IEC low voltage induction motors up to 355 kW, in efficiency classes IE2 to IE4, for pumps, fans and compressors in general industrial duty.

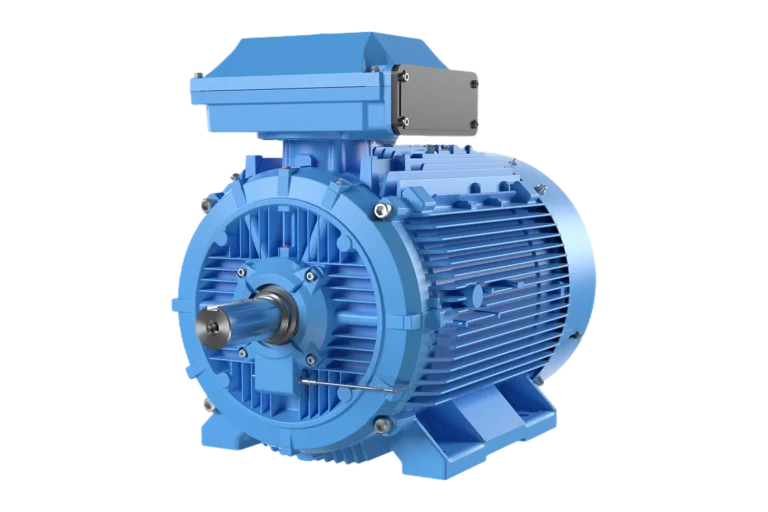

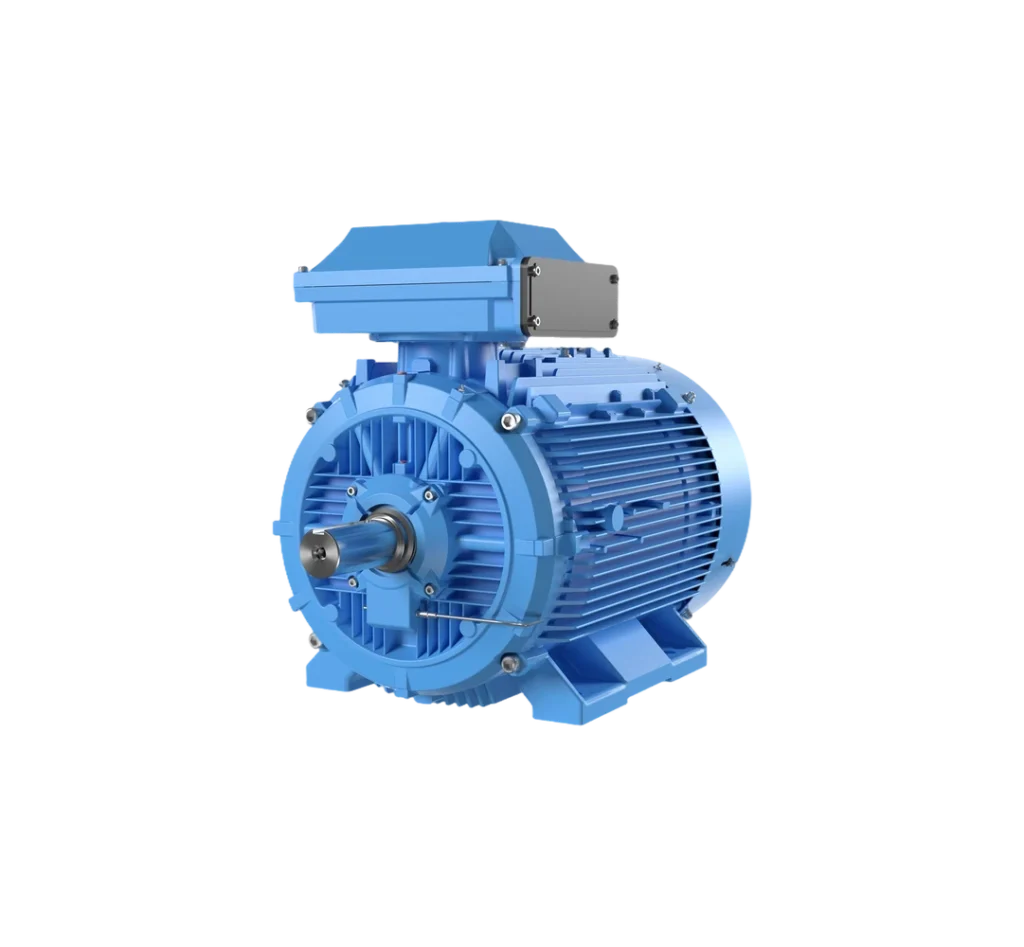

Magnet-free IE5 and IE6 synchronous reluctance motors from 0.75 to 450 kW, driven by an ABB inverter, for pumps, fans and compressors.

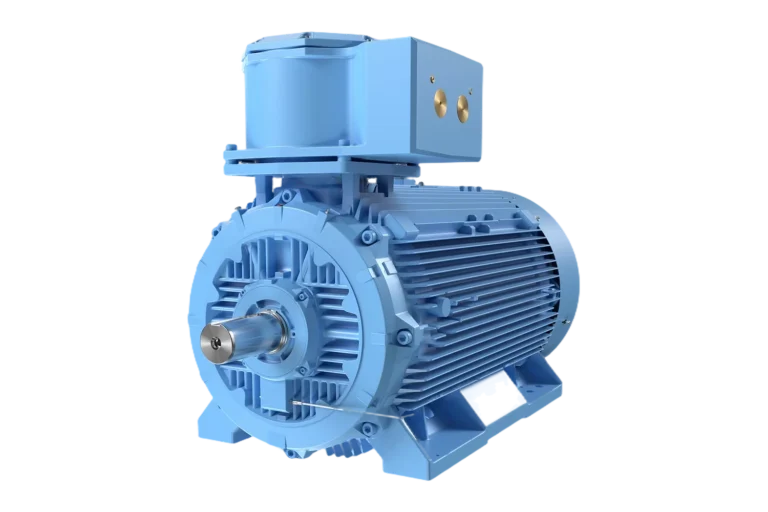

ATEX and IECEx certified low voltage motors from 0.12 to 1,000 kW, in flameproof, increased safety and dust ignition proof versions.

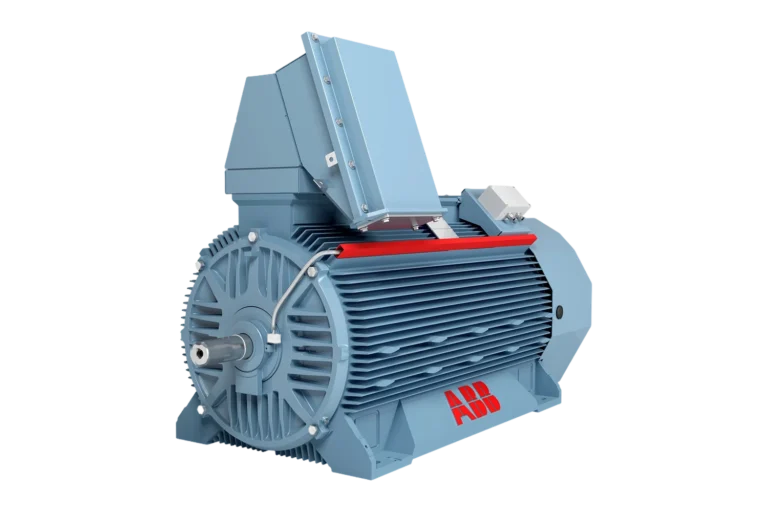

Rib cooled and modular high voltage induction motors up to 28.5 MW and 13.8 kV, for mills, large pumps, fans and compressors.

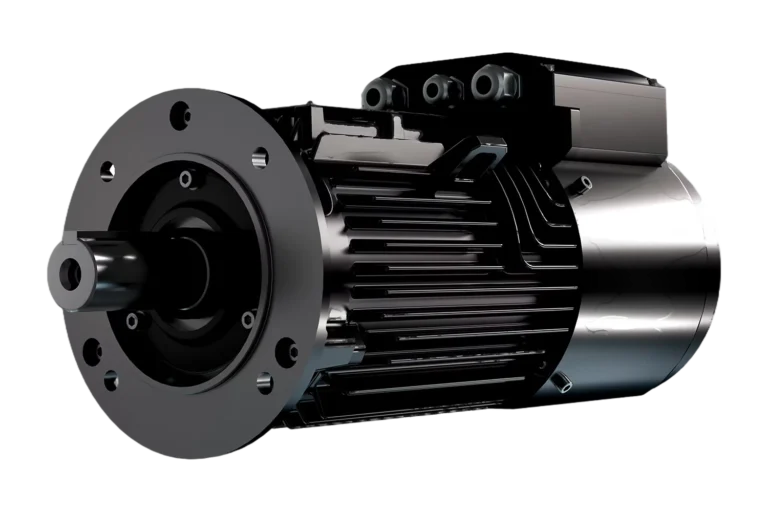

IE5 variable speed motors from 1.5 to 30 kW with the drive module built onto the motor, removing the need for a drive cabinet.
Not sure which solution best fits your application? Our engineers are available to review your requirements and help you select the most suitable products and materials for your project.
ABB low voltage process performance cast iron motors, 400 V 50 Hz and 460 V 60 Hz. Catalogue edition October 2025 (ABB document 9AKK105944).
