ABAC COOL and DRY refrigerant dryers, holding a stable pressure dew point from 7 degrees C across the load range.
A compressor turns the humidity in the air it draws into liquid condensate, and that water corrodes pipework, damages downstream tools and spoils the product. A refrigerant dryer cools the compressed air so the water condenses and can be separated out, then reheats it to room temperature so condensation does not form again inside the pipe. It is the most widely used drying technology, covering more than 95 per cent of industrial applications.
ABAC offers two ranges. COOL is the compact vertical unit, holding a 7 °C pressure dew point with very low energy consumption, a small footprint and a dew point indicator. DRY covers the larger sizes, 20 through 1260, holding a constant dew point under any load condition using a hot gas bypass valve, with a level-controlled condensate drain that discharges moisture without losing compressed air. Send us the flow, the working pressure, the inlet temperature and the dew point the process needs. We will confirm a range and a size.

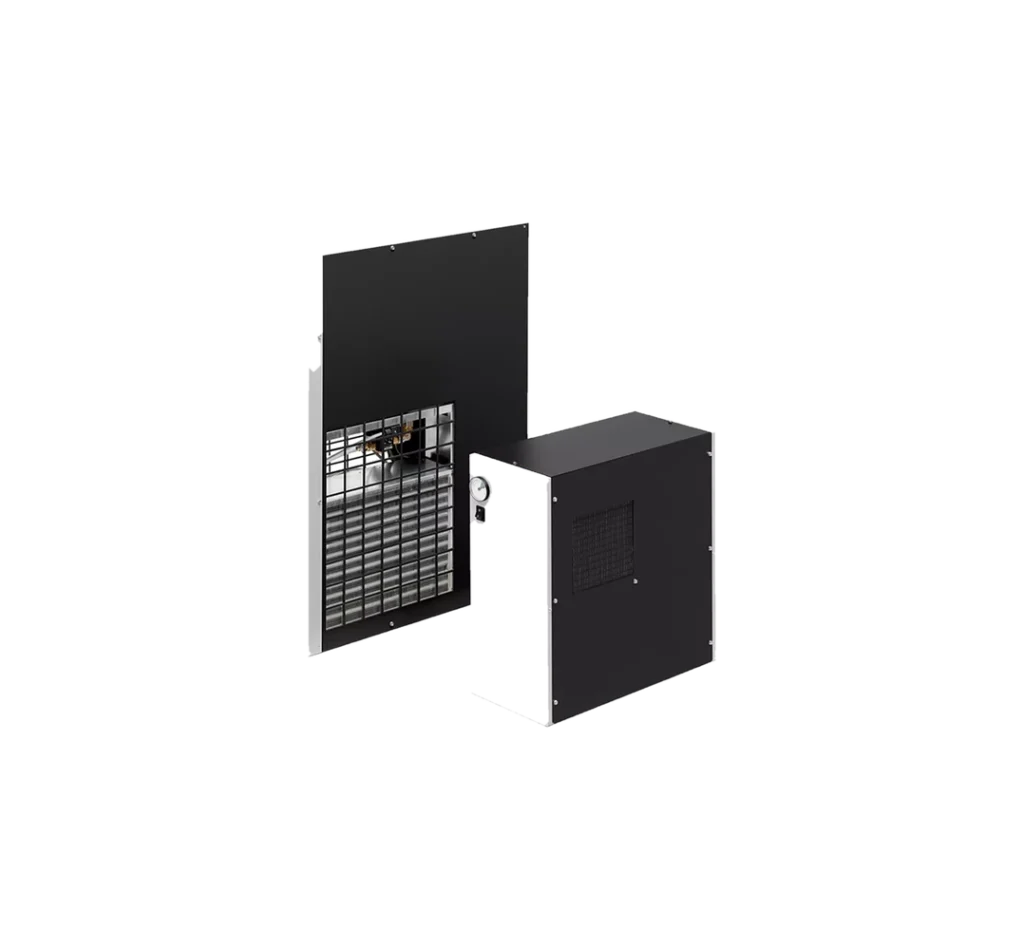

Compact vertical dryers holding a 7 degree C pressure dew point, for general industrial air.
COOL is the simple, low-maintenance end of the range, built as a vertical unit with an efficient cooling system, a small footprint and easy access for servicing. It carries a dew point indicator so air quality can be checked at a glance, and covers the pneumatic tools, control systems, tyre inflation, painting, packaging and injection moulding duties that make up most industrial demand.

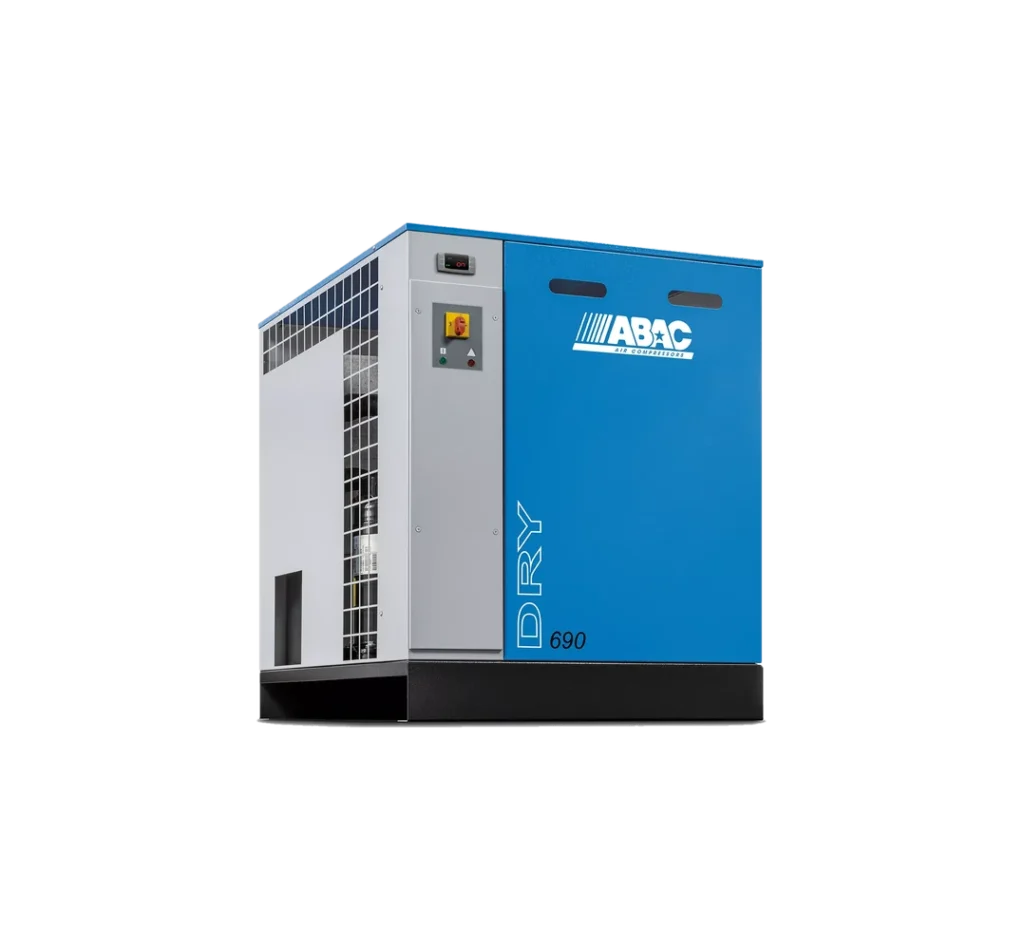

DRY 20 to 1260, holding a constant dew point under any load through a hot gas bypass.
DRY covers the larger and more demanding installations. A hot gas bypass valve controls refrigerant capacity across the whole load range so the dew point stays constant whatever the demand, an air-to-air exchanger recovers heat at low pressure drop, and a level-controlled drain discharges condensate without venting compressed air with it. DRY 20 to 130 can take optional filter supports and a bypass.
ABAC compressed air line filters in six grades, from general protection down to 0.003 micron.
ABAC oil water separators with two-step filtration, so condensate can be drained safely and legally.
ABAC air receivers in painted, galvanized and vitrified vessels for storage and pressure stability.
Not sure which solution best fits your application? Our engineers are available to review your requirements and help you select the most suitable products and materials for your project.

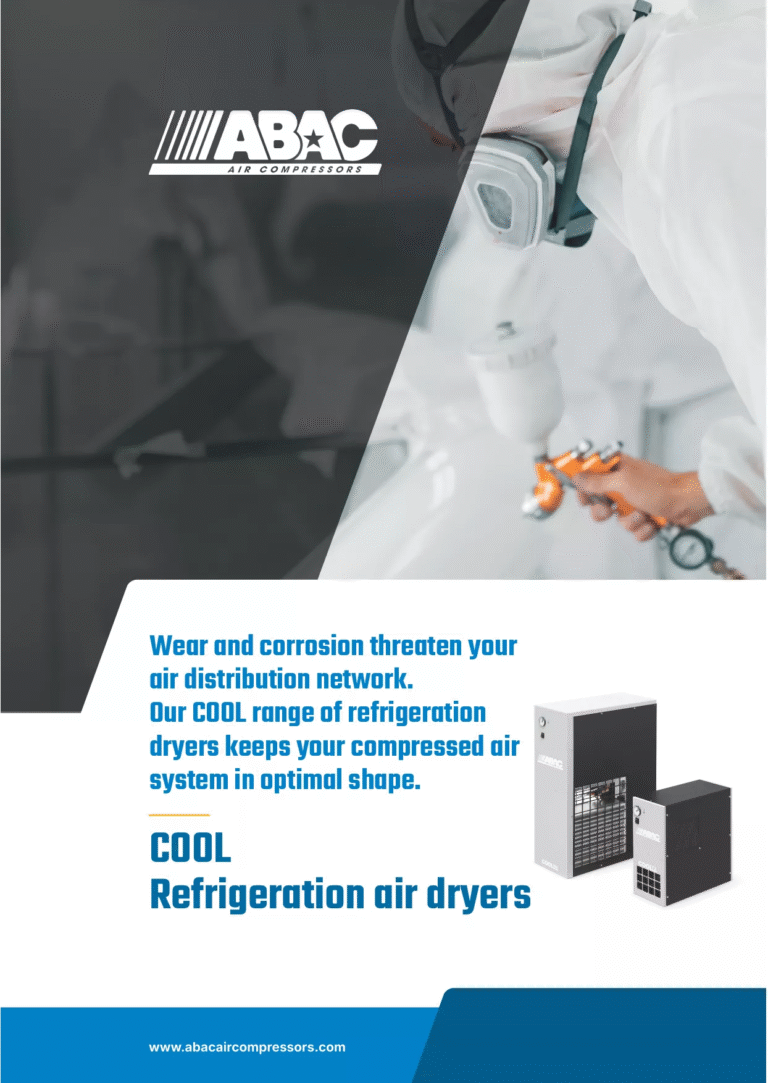

ABAC's leaflet for the COOL range of refrigeration air dryers, covering the drying principle, the 7 degree C pressure dew point, the compact vertical layout and typical applications.
DOWNLOAD CATALOGUE

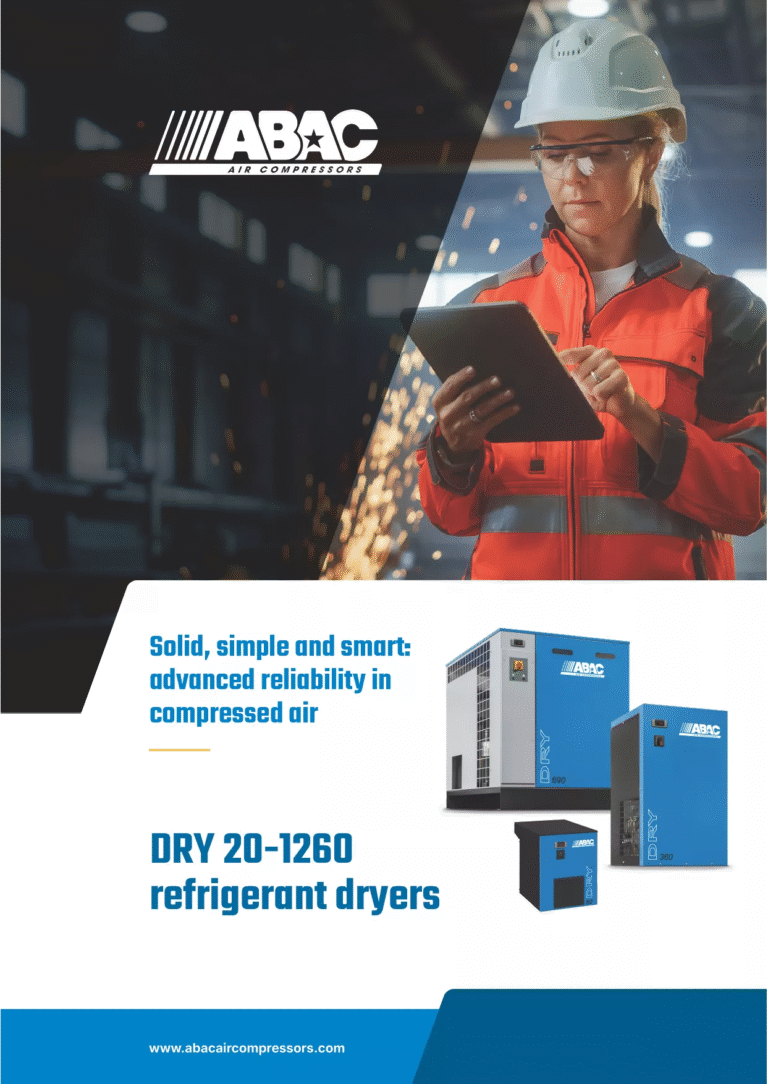

ABAC's leaflet for the DRY 20 to 1260 refrigerant dryers, covering the hot gas bypass, the air-to-air exchanger, the level-controlled condensate drain and the full component layout.
